Technical Specifications.
Here you will find all the technical specifications of our pegboards. To our knowledge, our accessories are only compatible with our pegboards!
Technical Specifications of Aire Pegboards

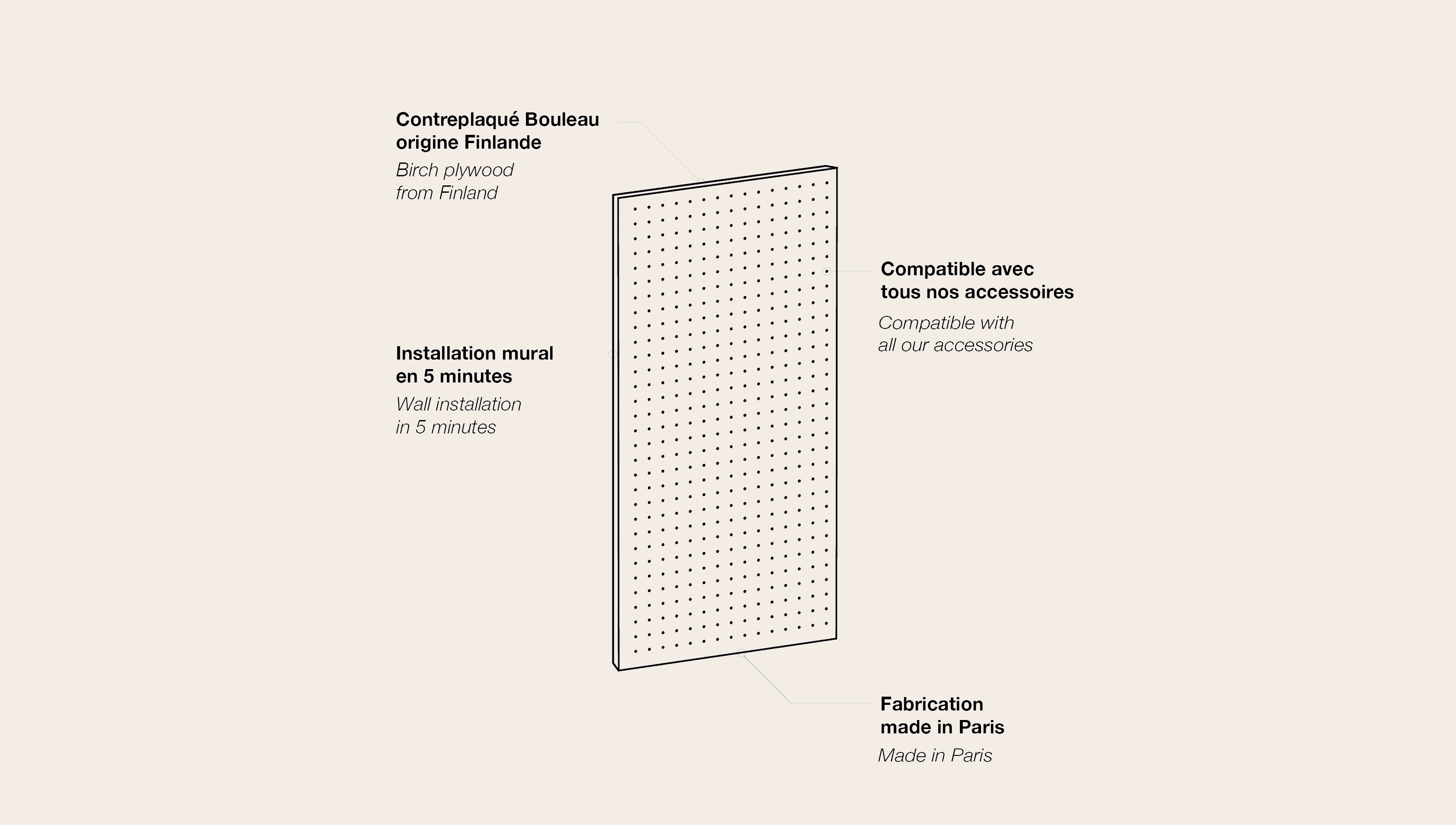

- Material: Birch plywood from Finland
- Available finishes:
o Natural raw sanded wood
o Natural oiled wood with a raw matte look (Blanchon Environment A+)
o Tinted oil colors (green, blue, yellow, black, white, specific RAL)
- Thickness:
o Wall-mounted pegboards: 9 or 15 mm
o Freestanding pegboards: 21 mm
- Standard dimensions:
o Format S: 48 x 48 cm
o Format M: 96 x 48 cm
o Format L: 96 x 96 cm
o Format XL: 144 x 96 cm
o Other sizes available on request
- Weight by format and thickness:
o Plywood 9 mm: 5.4 kg / m²
o Plywood 15 mm: 10.5 kg / m²
o Plywood 21 mm: 14.7 kg / m²

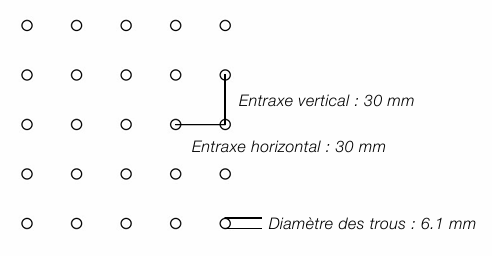

- Perforations:
o Hole diameter: 6.1 mm
o Hole spacing: 30 mm center to center
o The rods must insert at least 15 mm into the pegboard for the accessories to function properly
- Wall mounting:
o With screws and multi-material anchors (provided)
o Drill hole size: 5.5 or 6 mm
o Compatible with BA13 drywall, cinder block, brick, or concrete
- Maximum theoretical load capacity:
o 160 kg/m² (cinder block, brick, concrete)
o 55 kg/m² (BA13 drywall)
Usage / Maintenance / Information
- Using the pegboard
1. Attach the board to the wall using the provided mounting kit and the installation manual
2. Insert the stainless steel pins into the holes at the desired locations.
3. Place the accessories on the pins as needed.
4. Adjust the configuration as you wish for optimal organization
- Maintenance:
o Clean with a dry or slightly damp cloth
o Avoid prolonged exposure to moisture
- Additional information:
o Made in France, Paris, 75018
o Pegboard wood sourced from Finland, solid wood (accessories) sourced from France
o Warranty: 2 years against any manufacturing defects
